Product Details

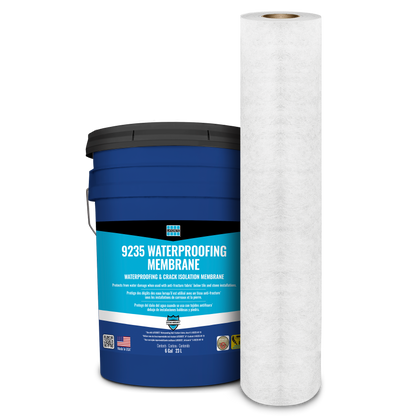

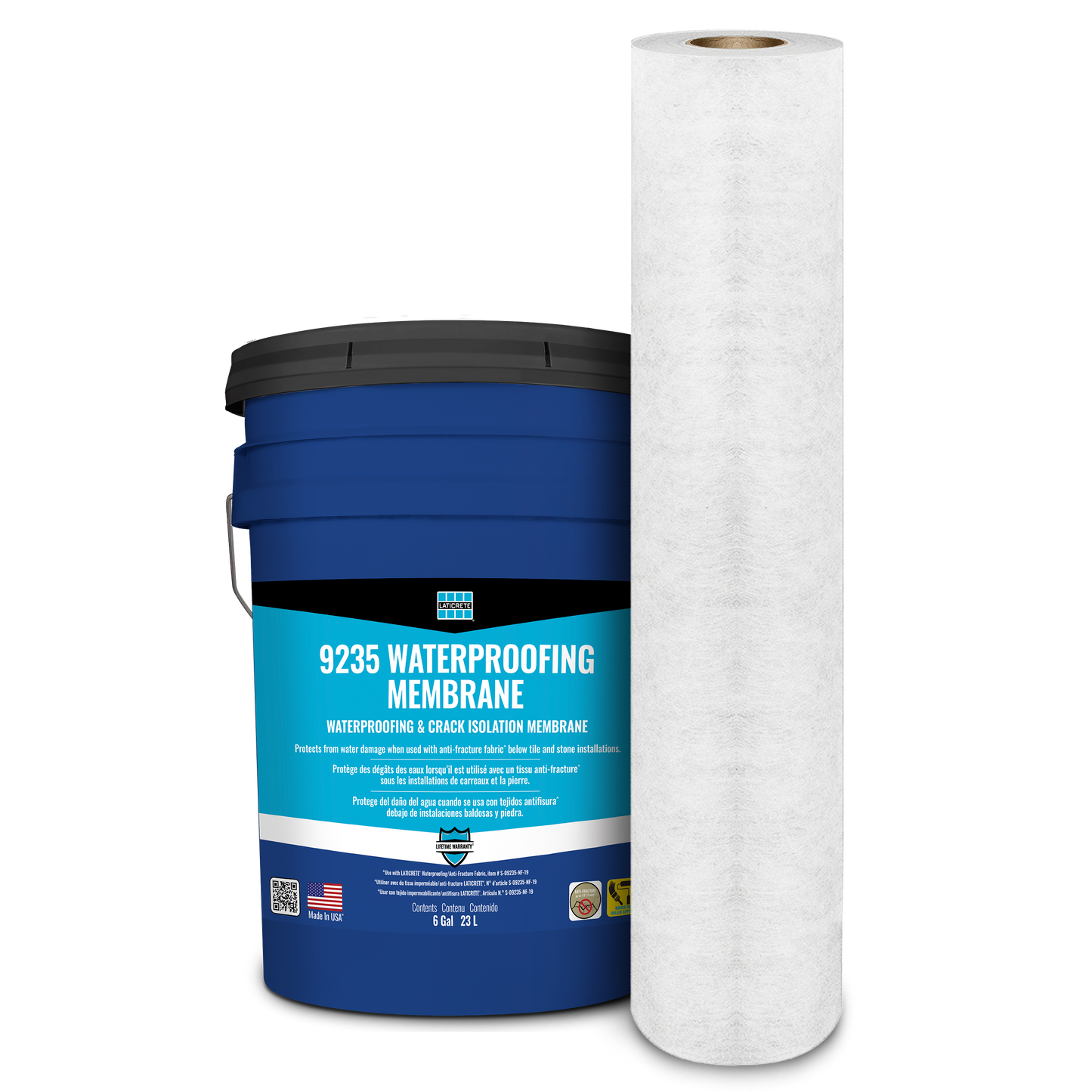

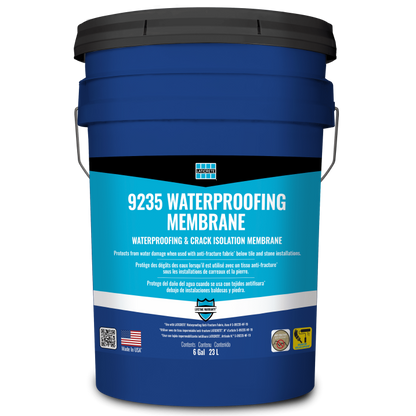

Laticrete - 9235 Waterproofing Membrane Kits w/ Anti-Fracture Fabric is a high-performance, liquid-applied waterproofing solution designed to provide superior protection against water infiltration in both residential and commercial tile installations. With a larger 6-gallon pail size, this version is ideal for larger-scale projects such as bathrooms, kitchens, swimming pools, and other high-moisture areas requiring complete water resistance.
- Equipped with Microban® antimicrobial product protection to fight the growth of stain-causing mold and mildew on the waterproofing membrane
- Safe - No solvents and non-flammable.
- Interior and exterior use
- Vertical and horizontal surfaces (including ceilings)
- Thin—only 0.02" (0.5 mm) thick when cured
- Anti-fracture protection of up to 1/8" (3 mm) over shrinkage & other non-structural cracks
- “Extra Heavy Service” rating per TCNA performance levels (ASTM C627)
- IAPMO and ICC Approval
- Applies quickly with a paint brush or roller— no special mixing needed
- Fast cure—normally ready in hours for finishes
- Install tile brick and stone directly onto membrane
- UL GREENGUARD GOLD certified
- Easy cleanup—just use water while fresh
- Protects concrete & reinforcing steel from corrosion
Property |
Method |
Results |
| Fungus Resistance | ANSI A118.10 (4.1) | Pass |
| Seam Strength | ANSI A118.10 (4.2) | Over 95 lbs/inch width |
| Breaking Strength | ANSI A118.10 (4.3) | 2400 lbs/in2 |
| Dimensional Stability | ANSI A118.10 (4.4) | No Change |
| Waterproofness | ANSI A118.10 (4.5) | Pass |
| Shear Strength | ANSI A118.10 (5.6) | 280 psi |
| System Performance | ANSI A118.10 (6); ASTM C627; TCA Rating^ | Cycles 1–14 “Extra Heavy" |
| Water Permeance | Fed. Spec. TTC–00555 (Mod.) | Excellent (E) |
| Water Vapor Transmission | ASTM E96–80 (Inverted Water Method) | 2.4 grains/h•ft2 |
| Water Vapor Permeance | ASTM E96–80 (Inverted Water Method) | 2.9 perms |
| Elongation | ASTM D751–89 | 20-30% |
| Service Temperature | LIL 1016-92 | -20°–280°F |
| Crack Suppression | ANSI A118.12.5.4 | Pass 1/8" |
| Chemical Resistance | Full Immersion (90 Day) |
|
