Laticrete - Strata_Mat Uncoupling Membrane for Crack Isolation

Laticrete - Strata_Mat Uncoupling Membrane for Crack Isolation

SKU: 0177-0150-2

$279.99 USD
$279.99 USD
Sale Coming Soon
Shipping calculated at checkout.
Roll Size

Highlights & Benefits

- Isolates the transmission of in-plane substrate cracks
- Up to 1/8" (3 mm) when used in direct bond applications
- Mortar hydration vents provide vapor management
- Accelerates thin-set curing for faster dry time.
- Translucent color provides instant coverage verification
- Patented design allows for a stronger mechanical bond
- Lightweight, easy-to-carry, and fast to install
- 1/8" (3 mm) height for transitioning between uneven floors

Shipping & Fulfillment

Typically in stock and ships within 1-10 business days depending on availability.

View full details

Product Details

Laticrete Strata_Mat Uncoupling Membrane for Crack Isolation (0177-0150-2) It is a high-performance uncoupling membrane designed to prevent cracks in the substrate from transferring to your stone or tile installation. Ideal for both residential and commercial projects, Strata_Mat provides a robust solution for crack isolation, reducing the risk of floor failures caused by substrate movement. Its innovative design features a unique surface structure that enhances bond strength with thin-set mortar, making it perfect for use with a wide range of tile types, including ceramic, porcelain, and natural stone. Strata_Mat also improves sound control and can be easily rolled out for quick and efficient installation, offering long-term protection against moisture, cracks, and movement. Whether you're installing tile over concrete, wood, or other substrates, Strata_Mat Uncoupling Membrane ensures your floor remains stable, durable, and resilient for years to come.



Property

Test Method

Results
Thickness n/a 1/8” (3mm)
Point Load ANSI A118.12 5.2 Pass
Robinson Thin-Bed Floor Test - 16”, 19.2" & 24" o.c. ASTM C627 Extra Heavy
Large & Heavy Tile Mortar – Wood Floors (aka medium-bed mortars) 16”, 19.2" & 24" o.c. Row 5, Col 2 Residential
Large & Heavy Tile Mortar (aka medium-bed mortars) over concrete ASTM C627 Light



Suitable Substrates

Cement Backer Board
Cement Terrazzo
Concrete
Expanded Polystyrene
Gypsum Underlayment Or Light Weight Concrete
Mortar Bed
Oriented Strand Board (OSB)
Oriented Strand Board (OSB)
Resilient Flooring
Exterior Glue Plywood (Interior Only)

Estimated Thin-Set Coverage

Approximate latex thin-set adhesive mortar usage for a 323sq/ft roll of STRATA_MAT is as follows when installed with 4XLT, 253 Gold (or 50lb bag equivalent in lightweight adhesive mortars):

  • To embed a 323 ft2 (30m2) roll of STRATA_MAT to the substrate using a 1/4” x 3/16” V-notch trowel - 2.8 bags will be required
  • To fill the divots for a 323sq/ft roll of STRATA_MAT - 2.3 bags will be required
  • To set 323 sq. ft. of tile with a ¼” x 3/8” square notch in trowel on top of STRATA_MAT - 5.6 bags will be required
  • A total of 10.7 bags will be required when installing a 323sq/ft roll of STRATA_MAT

Product Advantages

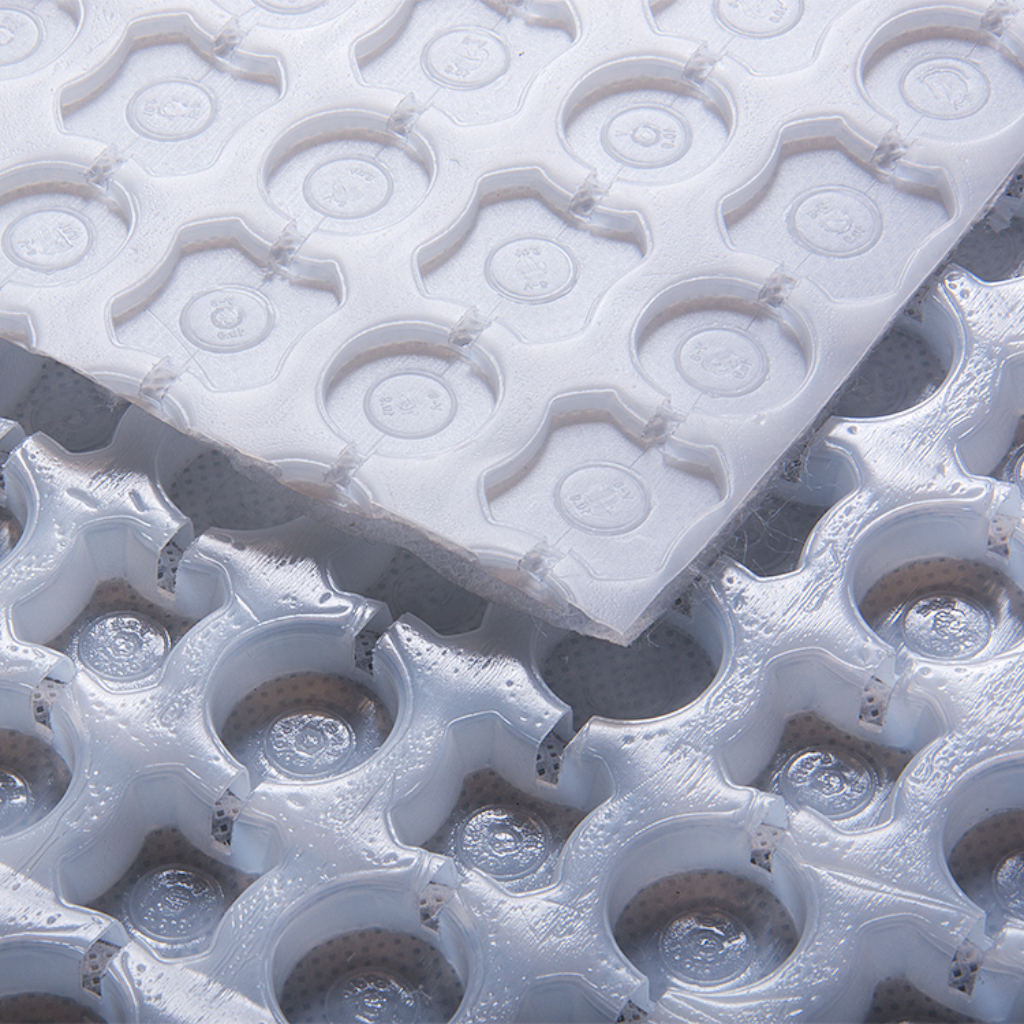

  • Mortar Hydration Vents - creates a mechanical bond between the mat and adhesive mortar - allows the mortar to cure faster providing a stronger bond of tile at 16 – 24 hours for faster time to grout.
  • Allows for use of the appropriate mortar per industry standards.
  • Provides vapor management
  • Eliminates transmission of in plane substrate cracks of up to 1/8" (3 mm) when used in direct bond applications
  • Instant coverage verification· allows for installer to see mortar coverage underneath the mat during installation without having to lift and verify
  • Allows for easier floor layout as chalk lines are easily visible on surface prior to tile installation
  • Rated Extra Heavy per ASTM C627 using the thin-bed method
  • Rated residential over wood joist or trussed floors when installing tile using a large & heavy tile adhesive mortar (aka medium bed method)
  • Rated light over concrete when installing tile using a large & heavy tile adhesive mortar (aka medium bed mortar)
  • Lightweight, easy to carry and fast to install with standard tools
  • Can be used under moisture sensitive stone
  • Suitable for interior non-industrial vehicular traffic applications over concrete substrates

VOC/LEED Product Information

This product has been certified for Low Chemical Emissions (ULCOM/GG UL2818) under the UL GREENGUARD Certification Program. For Chemical Emissions. For Building Materials, Finishes and Furnishings (UL 2818 Standard) by UL Environment.
